Waste Water

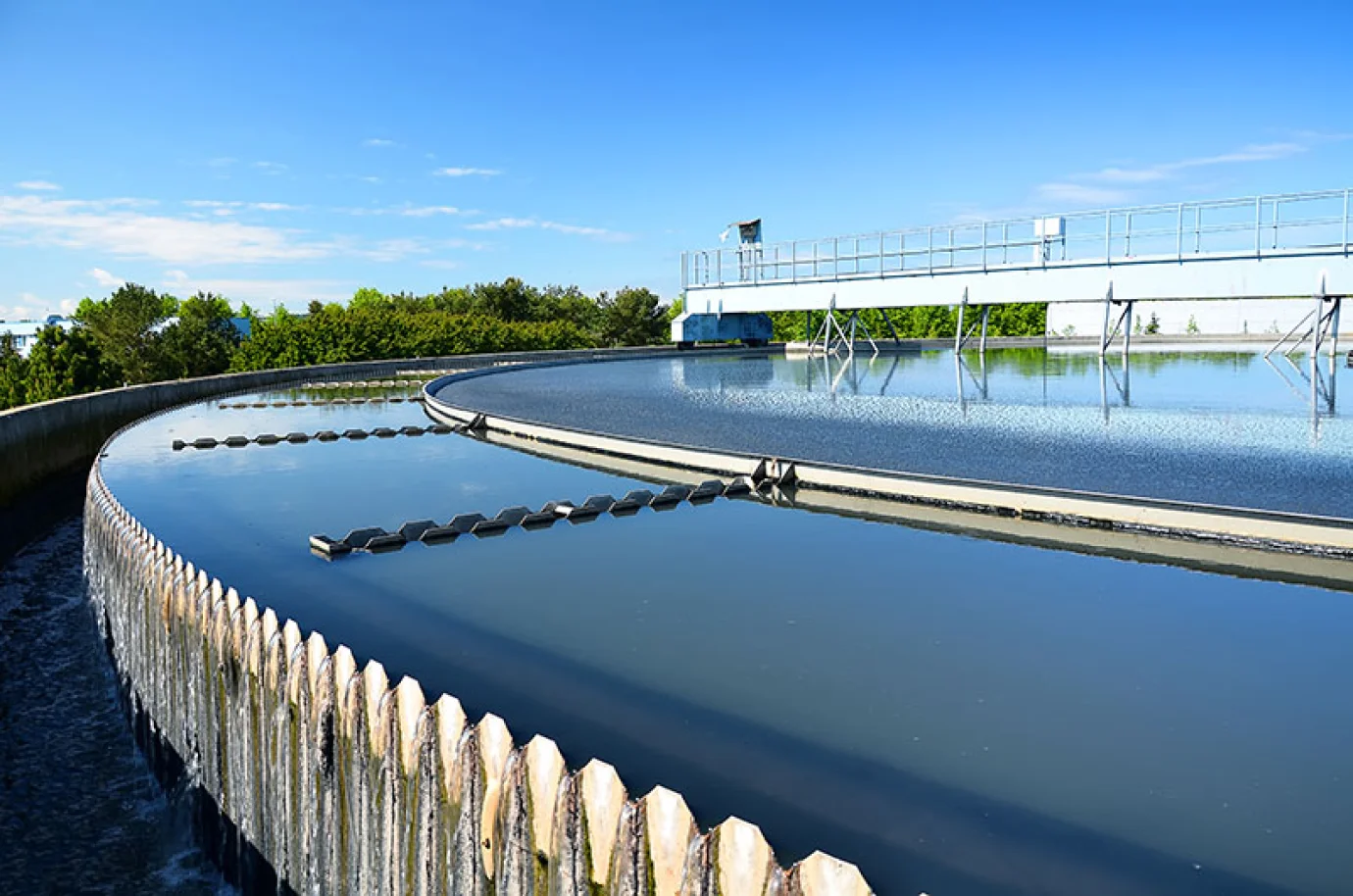

Waste Water Treatment Plant

Wastewater treatment is a process used to convert wastewater into an effluent that can be either returned to the water cycle with minimal environmental issues or reused. The latter is called water reclamation and implies avoidance of disposal by using of treated wastewater effluent for various purposes. Treatment means removing impurities from water being treated; and some methods of treatment are applicable to both water and wastewater. The physical infrastructure used for wastewater treatment is called a "Wastewater Treatment Plant" (WWTP). Watermaq offers the best wastewater treatment plant service in Kerala.

By-products from wastewater treatment plants, such as screenings, grit and sewage sludge may also be treated in a wastewater treatment plant. If the wastewater is predominantly from municipal sources (households and small industries) it is called sewage and its treatment is called sewage treatment. The treatment of wastewater belongs to the overarching field of Public Works - Environmental, with the management of human waste, solid waste, sewage treatment, storm water (drainage) management, and water treatment. If you are looking for a sewage treatment plant in Malappuram , Watermaq is here to help you.


Industrial wastewater treatment plants are required where municipal sewage treatment plants are unavailable or cannot adequately treat specific industrial wastewaters. Industrial wastewater treatment plants may reduce wastewater treatment charges collected by municipal sewage treatment plants by pre-treating wastewaters to reduce concentrations of pollutants measured to determine user fees.



    We also give priority to good look. The design we offering is comparable to contemporary world.


    The price we imposing is affordable to all type of customers.


    As we using most modern technology, the initial investment is comparatively very low.


    As multiple variety of products available, the volume we process vary from very low to high.


    We deliver the highest level of general development, as of a device, technique, or scientific field achieved at a particular time.


    Water content free waste is a need. Through our system we offer water free waste.

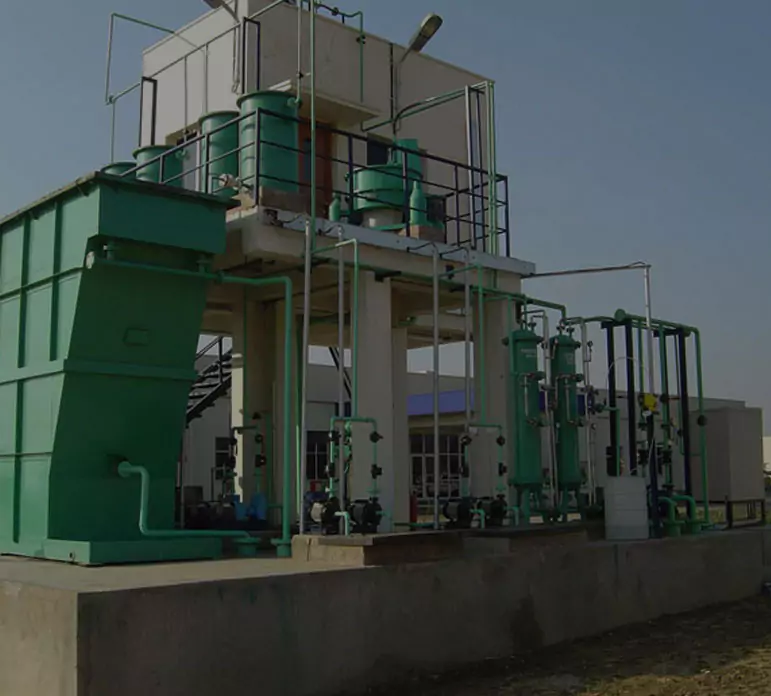

Effluent Treatment Plant

The wastewater from car wash center will be first send to a bar screen chamber where large floating materials are removed. The screenings will be removed periodically for the smooth functioning of the plant. There after the Sullage enters into collection tank Thesullage stream also enters the oil separator tank for further treatment. The floating oil can be removed and collected in a separate tank and the sludge will go to sludge holding tank . The flow from the oil separator will be send to a chemical mixing cum settling tank where chemicals (Coagulants) are dosed to neutralize any toxic chemicals like surfactants and will be coagulated and settled in the primary settling tank. The overflow from the settling tank is stored in an intermediate storage tank. From storage tank it is pumped through PSF and ACF and disinfected with hypochlorite (3%) after ACF. The treated effluent will be stored in a treated water storage tank. The quality of treated water will meet the KSPCB standards and is fit for reuse such as Vehicle washing, gardening etc and it can also be safely discharged out.

advantages img


  • The treated effluent water can be used for gardening and underbody wash of vehicle.
  • Conservation of energy.
  • Minimum maintenance.
  • Less direct labour.
  • Low capital and maintenance cost with effluent quality within the acceptable limits of Pollution Control Board.
  • Make a clean environment.

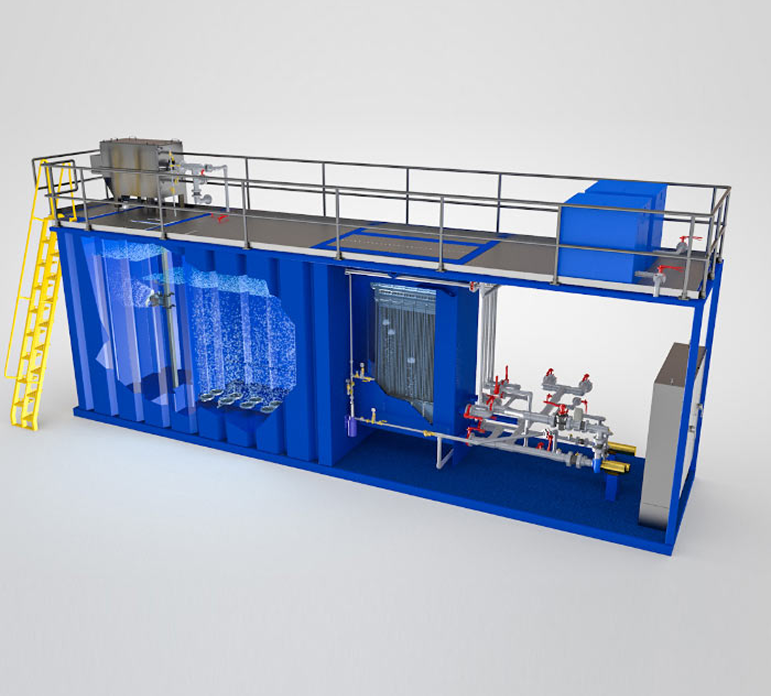

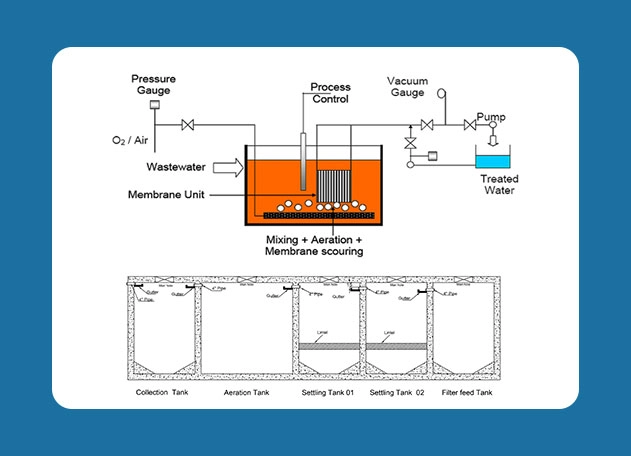

Membrane Bio Reactor

MBR stand for Membrane Bio Reactor, it is essentially a filtration process which used bio-membrane to treat wastewater. When a microfiltration or ultra filtration membrane is submerged in mixed liquor, and a positive (by gravity) or suction pressure is applied, the pores of the membrane and the resulting bio film formation on the surface of the membrane acts as a physical barrier that allow only the permeate or clean water to pass through. Pre-treated, screened influent enters the membrane bioreactor, where biodegradation takes place. The mixed liquor from the bioreactor is withdrawn and pumped along submerged or semi cross-flow filtration membrane modules. Permeate form the membrane constitutes the treated effluent. The reject stream, consisting of concentrated bio- solids.

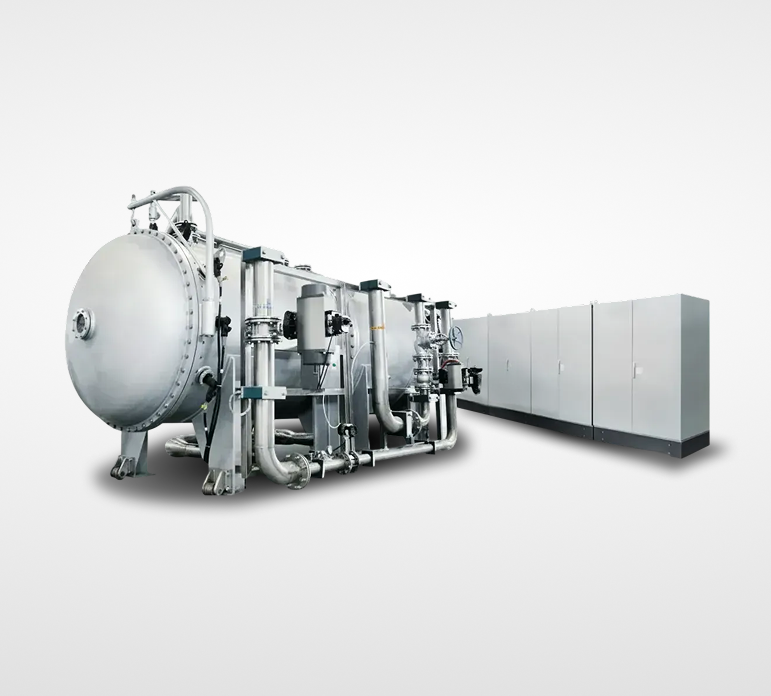

Ozone is “active oxygen” nature’s special element and a beautiful gift to mankind. Ozone is a triatomic allotrope of oxygen formed by recombination of oxygen atoms. It is a colourless gas with characteristic pungent pungent odor and can easily be detected at low level of 0.02ppm. it is a very strong oxidant and is over 3000 times more powerful disinfectant than chlorine. Ozone is a one –stop solution to most of the water treatment related problems such as bacteria, virus, algae, fungi, color, odor, COD and BOD. it disinfects, oxidizes, deodorized and decolorized. Ozone is generated by an electrical discharge through dry air or pure oxygen and is generated onsite because it decomposes to elemental oxygen in a short amount of time.
